Sherline Lathe 4000A-DRO 3.5" Lathe, 8" Bed with P/N 8200 2-axis digital readout/RPM display factory installed (Inch) Ships factory direct USA

Sherline Lathe 4000A-DRO Sherline 3.5" Lathe, 8" Bed with P/N 8200 2-axis digital readout/RPM display factory installed (Inch) 4000A-DRO

Additional Images

Sherline Lathe 4000A-DRO Sherline 3.5" Lathe, 8" Bed with P/N 8200 2-axis digital readout/RPM display factory installed (Inch) 4000A-DRO
SKU 4000A-DRO
Item In Stock
$1,124.50
Description
Features & Specs
YOU SAVE $45.00 over the price of these items purchased individually.

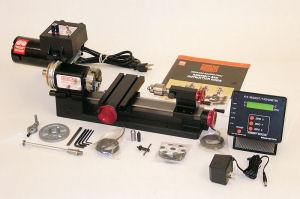

Sherline Lathe 4000A-DRO 3.5" Lathe, 8" Bed with P/N 8200 2-axis digital readout/RPM display factory installed (Inch)
  • Sherline 4000A-DRO Lathe 3.5" x 8" lathe Plus
  • 1041 2.5" 3-jaw self-centering chuck
  • 1072 Jacobs 1/4" tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
  • 8200 2-axis digital readout/RPM display factory installed

    Standard equipment for the basic model 4000 (metric 4100)
  • A powerful 90 VDC motor with electronic speed controller
  • 2.75" (70mm) x 6.0" (152mm) crosslide
  • 15" (381mm) steel bed to allow 8" (203mm) between centers
  • Standard 1-5/8" (41mm) laser engraved aluminum handwheels
  • Pulleys
  • Belt
  • Faceplate
  • Lathe dog
  • Two dead centers
  • Three hexagonal keys
  • Tool post
  • Sharpened high-speed steel cutting tool
  • Eight-foot, three-wire power cord
  • Instruction booklet.
    This lathe can turn a part up to 3.5” in diameter over the bed or up to 1.88” over the carriage without riser blocks. With an optional riser block, parts up to 6” in diameter can be turned over the bed. The lathe has 8” of space between centers. The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed. .
    Any Sherline lathe can be ordered with a digital readout installed. Special handwheels with built-in encoders are installed in place of the standard handwheels on the crosslide and leadscrew. These handwheels are connected to a display box that translates handwheel rotation into a readout of table position to within .0005" (or .01 mm). In addition, a constant readout of spindle RPM is displayed. The advantage of a digital readout is that you no longer need to count handwheel rotations when moving distances longer than a single revolution. This helps eliminate math errors. The large, easy-to-read display reads out to 3 and a half decimal places to give accuracy to within .0005". The display for each axis can be reset to zero at any time with the push of a button. Backlash values can be set for each axis in the programming so that backlash is electronically eliminated when changing direction of handwheel rotation. A third axis is available on the display box should you later decide to add a vertical milling column or use it on a Sherline 3-axis mill. The readout can function with inch or metric lathes. In the metric mode, the position reads out to 1/100 of a millimeter. (NOTE: The unit does not translate dimensions from inch to metric. It must be initialized to work with the pitch of the leadscrew to which the handwheel is attached.) .
    Any Sherline lathe can be ordered with a digital readout installed. Special handwheels with built-in encoders are installed in place of the standard handwheels on the crosslide and leadscrew. These handwheels are connected to a display box that translates handwheel rotation into a readout of table position to within .0005" (or .01 mm). In addition, a constant readout of spindle RPM is displayed. The advantage of a digital readout is that you no longer need to count handwheel rotations when moving distances longer than a single revolution. This helps eliminate math errors. The large, easy-to-read display reads out to 3 and a half decimal places to give accuracy to within .0005". The display for each axis can be reset to zero at any time with the push of a button. Backlash values can be set for each axis in the programming so that backlash is electronically eliminated when changing direction of handwheel rotation. A third axis is available on the display box should you later decide to add a vertical milling column or use it on a Sherline 3-axis mill. The readout can function with inch or metric lathes. In the metric mode, the position reads out to 1/100 of a millimeter. (NOTE: The unit does not translate dimensions from inch to metric. It must be initialized to work with the pitch of the leadscrew to which the handwheel is attached.)
