Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE

Delta 12-1/2" Variable-Speed MIDI-LATHE 46-460
Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460
Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460
 	Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460

Additional Images

Delta 12-1/2" Variable-Speed MIDI-LATHE 46-460 Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460 Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460  	Delta Wood Lathe 46-460 12-1/2" Variable-Speed MIDI-LATHE 46-460
SKU 46-460
Item In Stock
$571.20 $1,142.40 50%
Description
Features & Specs
The 46-460 includes 6 in. and 10 in. Tool Rest, spur center, Chrome 3 in. Face Plate, tool rest base, Knockout Bar, live center, wrenches.
  • Powerful 1 HP max, 1,725 RPM Motor
  • Large 12 1/2 in. swing capacity provides the largest capacity in its class
  • Electronic Variable Speed with three-pulley speed ranges provide the required speeds needed to turn a project without changing belt position
  • Forward and Reversing function allows the turner to achieve a superior finish. Sanding a turned piece with the grain causes the wood fibers to lay down and remain rough. Sanding a turned piece against the grain will cut the wood fibers smooth. Rotating the turned piece in both directions is the way to achieve this super smooth finish. With our competitors the turner would need to remount the work piece backward to achieve this dual rotation. This is time consuming and often impossible. With the Delta 46-460 it is a simple flip of the switch.

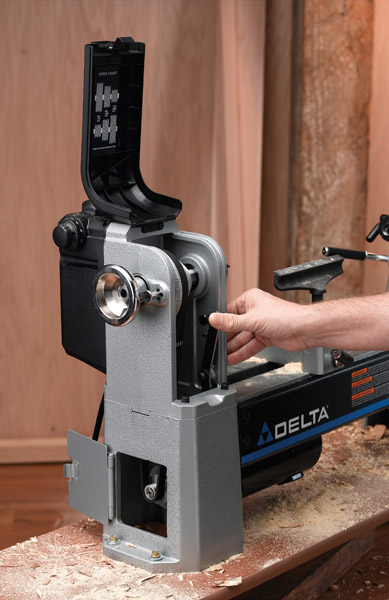

  • Patented belt tensioning system for easy and quick speed changes and sets the belt at the correct tension every time for maximum power transfer and longer tool life
  • 6 groove belt provides superior power to turn large objects
  • Indexing pin to lock the head stock spindle in 24 different locations for fluting and other decorative applications
  • All cast-iron construction provides stability and is extremely durable

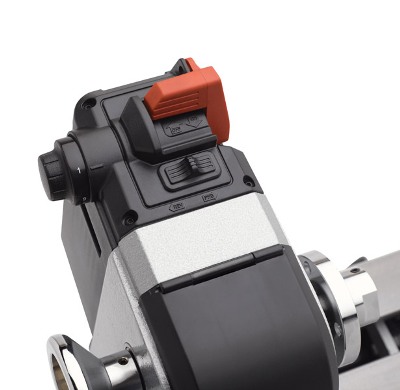

  • Over Headstock On/Off switch provides easy in use access
  • Ball-bearing live center
  • Includes 3 in. face plate, 6 in. tool rest and 10 in. tool rest. Turning long spindles require either a longer tool rest or the user to continually move the short tool rest. Turning short work requires a short spindle; the long spindle will not allow the turner to get close enough to the piece.
  • On board storage for easy access to adjustment tools
  • Heavy-duty, steel knockout bar
  • CSA Listed
    Specifications:
  • Motor: 1 HP max, 120V, 60 Hz, 1 Phase
  • Motor Control: Electronic Variable Speed
  • Speed: 250-700, 600-1,800 and 1,350-4,000 RPM
  • Swing Over Bed: 12 1/2 in.
  • Swing Over Base: 9 9/16 in.
  • Distance between Centers: 16 1/2 in.; with Extension: 42 in.
  • Drive Spindle: 1 in.-8 RH TPI Thread
  • Drive Spindle through Hole: 15/32 in.
  • Head and Tailstock Taper: #2 MT
  • Tailstock through Hole: 13/32 in.
  • Self-ejecting
  • Tailstock Spindle Travel: 2 1/4 in.
  • Tool Rest: 6 in. and 10 in.
  • Length: 36 in.
  • Width: 11 in.
  • Height: 17 3/4 in.
  • Weight: 97 lbs. Shipping Weight: 106 lbs.
