Sherline Lathe 4400A-CNC Sherline 3.5" lathe with 17" bed CNC Ready (Inch)

SKU: 4400A-CNC

100% Secure Shopping
Your Price: $931.00
Qty:
  • Sherline Lathe 4400 3.5" x 17" Deluxe Lathe
  • 1040 3.125" 3 Jaw Chuck
  • 1069 3/8" Tailstock chuck
  • 2 stepper motor mounts factory installed
    (Stepper motors, software, drivers and computer NOT included)

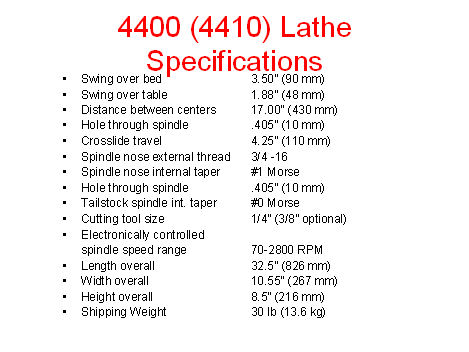

    Standard equipment for the basic model 4400 (metric 4410)
  • 24" bed that has 17" between centers

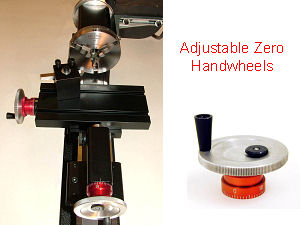

  • 2.5" resettable “zero” handwheel on the leadscrew
  • Two 2" resettable “zero” handwheels on the crosslide and feed screw
  • A powerful 90 VDC motor with electronic speed controller
  • 2.75" x 6.0" crosslide
  • 3057 Rocker Tool Post
  • Electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes.
  • A second pulley position available that offers extra torque at low RPM if needed
  • Belt
  • Faceplate
  • Lathe dog
  • Two dead centers
  • Three hexagonal keys
  • Tool post
  • Sharpened high-speed steel cutting tool
  • Eight-foot, three-wire power cord
  • Instruction booklet.
    Many machinists find that the extra space between centers comes in handy when working with a part held in a chuck and a larger tailstock chuck with a long drill bit in place. The combination of chucks, part and drill can eat up a lot of the available center-to-center distance, and a little extra capacity is often appreciated. This lathe offers the same diameter turning capacities as the shorter lathe and same powerful motor/speed control. The differences are both the extra 9” of center distance and the addition of extras like the adjustable zero handwheels and rocker toolpost, making this lathe a good value for the extra cost. CNC-READY MACHINES: Any Sherline lathe or mill can be ordered with stepper motor mounts in place of the handwheels ready for the installation of NEMA 23 size stepper motors. (Stepper motors, drivers and software are not included.) Handwheels are included for use on the rear shaft of dual shaft stepper motors, but the stepper motors must be installed before manual control can be achieved. Machines equipped with stepper motor mounts are denoted by the machine or machine/accessory packages part number followed by the letters “CNC”.
