1041 Sherline 3-Jaw Chuck

SKU: 1041

100% Secure Shopping
Your Price: $95.00
Qty:

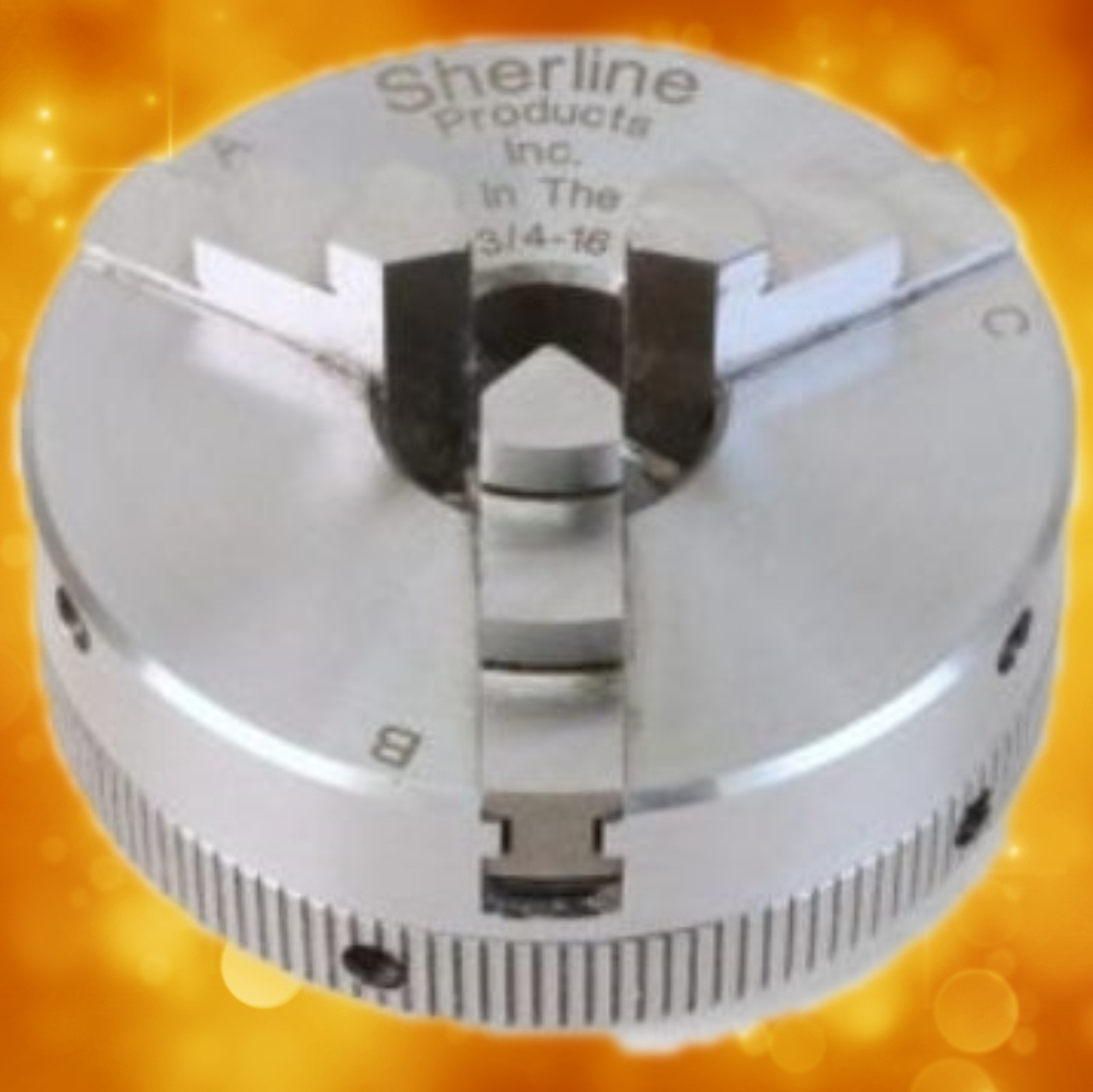

Sherline 3-Jaw Self-Centering Chuck Model # 1041 (2.5" O. D.)

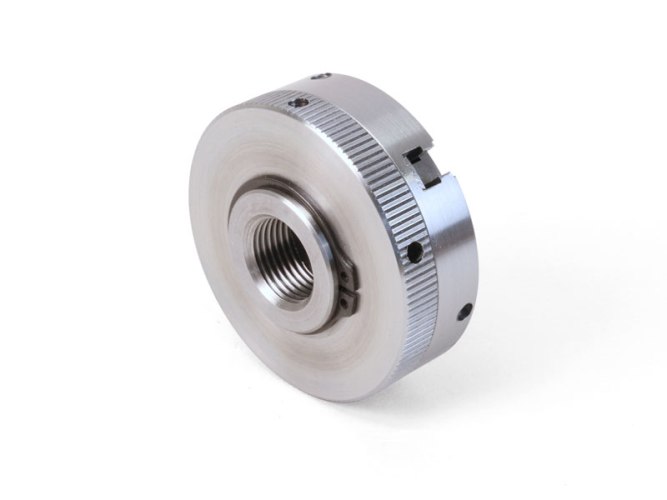

3/4-16 Spindle Thread

Three-jaw chucks are designed so that all three jaws move together and automatically center round or hexagonal parts stock to within a few thousandths of an inch.
3-jaw chucks provide the quickest and easiest way of holding work in the lathe. For this reason, they are the most popular of the Sherline accessories. This compact chuck is a good all-around workhorse for most lathe work. It has a clamping range from 3/32" (2 mm) up to 1-3/16" (30 mm) diameter with the jaws in the normal position. With the jaws in the reversed position, work up to 2-1/4" (56 mm) can be gripped.

The hole through the chuck is .687" (17 mm). Rotating the knurled ring closes all three jaws simultaneously to quickly grip round or hexagonal stock. Tommy bars (provided) are used in the holes in the side to tighten and loosen the chuck for more leverage.

1041 Sherline 3-Jaw Chuck Instructions
