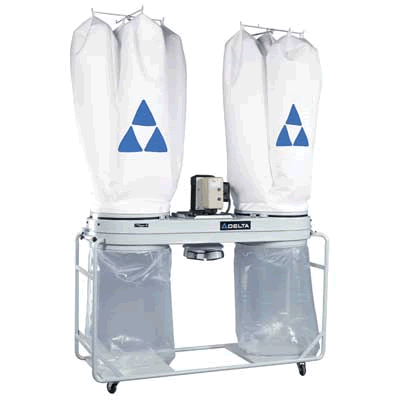

50-764 Delta 5 HP Dust Collector 4800 CFM 3 Phase

SKU: 50-764

100% Secure Shopping
MSRP: $1,542.96
Your Price: $1,295.00
You Save: 16%
Qty:
E-mail mike@mikestools.com for special shipping rates.
  • Standard 1 micron filtration bags keep your shop safer and cleaner.
  • Powerful TEFC induction motor for long-lasting, smooth performance with protection from damaging dust. The dust ports and motor housing can be oriented facing up or down.
  • Snap-in bag rings are faster, easier and eliminate the need for cam-over-lock style clamps.
  • 6 mil plastic chip collection bags show you when the bags need emptying.
  • Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way.


Contents: Delta Model 50-764 5 HP Single-Stage Dust Collector includes 3 Phase motor and blower, support frame, (2) 1 micro filtration bags, (4) 6 mil plastic chip collection bags, (2) snap in bag rings, (4) 5" intake ports, (4) swivel caster assemblies.

SPECIFICATIONS

MOTOR:

  • 5 HP, 3450 RPM, 230/460V, 3 Phase, 60 hz

MAXIMUM CFM:

  • 4800

MAXIMUM STATIC PRESSURE:

  • 10.5 (inches of water)

IMPELLER DIAMETER:

  • 13.5" (343 mm)

FILTER BAG AREA (TOTAL):

  • 140.8 square feet, 13.08 square meters

CHIP BAG AREA (TOTAL):

  • 12.4 cubic feet, 353 liters

STANDARD BAG FILTRATION:

  • 1 micron

DIMENSIONS:

  • Length: 75" (1905 mm)
  • Width: 26" (660 mm)
  • Height: 110" (2794 mm)

WEIGHT:

  • 260 lbs (118 kg)
